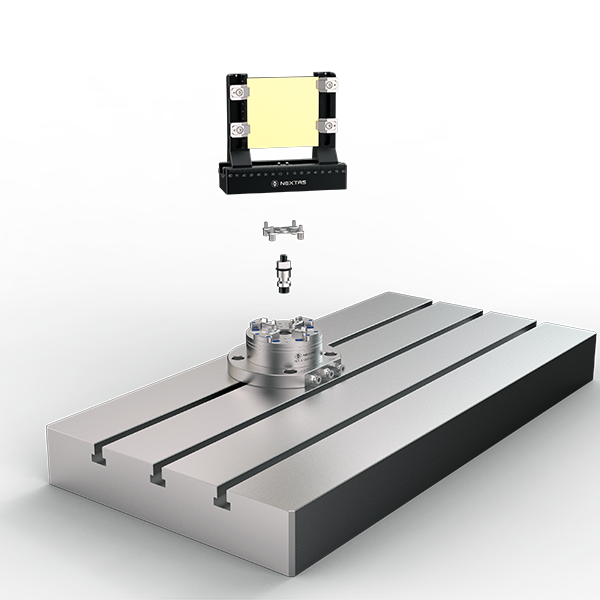

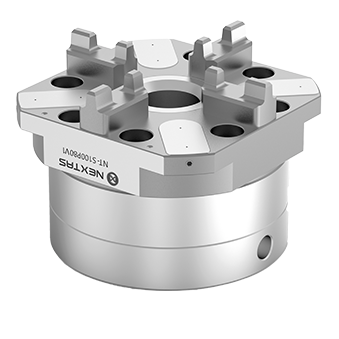

- E-Series Datum Chuck System
Pneumatic chuck mechanical self-locking clamping structure design, with pneumatic unlocking, automatic cleaning and air tightness detection function;
Chuck repeatability <0.003mm, used in high precision manufacturing quick change clamping standard interface;
The chuck is pneumatically unlocked for easy disassembly and reassembly, and the sub-clamps can be realized in off-line clamping quick-change mode to increase the machine tool turnover rate;
The standardized modular design of the chuck and fixture can be universally used in all kinds of industrial manufacturing flexible expansion applications;
Industry common standard interface, high versatility, can realize automated standard operation.
Applicable fields: industrial automation, CNC, EDM, WEDM, grinding machine and other equipment applications
■ Repeat positioning accuracy: ＜0.003mm
■ Clamping force: 6000N
■ Unlocking air pressure: 0.5Mpa-0.8Mpa
■ Positioning reference surfaces are self-cleaning and airtightness checked
■ Fixed indexing position: 4x90°
■ Clamping load: ≤ 35kg
- Application
-
Aerospace
-
Defense Industry
-
Semiconductor Industry
-
Automobile Manufacturing
-
Shipbuilding Industry
-
Medical Equipment
-
Automatic Production
-
Laser Intelligent Manufacturing
